Shed Siding: Types, Cost and How Much You Need

Panel siding goes straight on the studs, over house wrap, and covers the floor frame too. At the designer's default wall one 4x8 panel does it with no joint, and here is the count for 24 sizes.

By The Shed PlannerUpdated 10 min readChecked against 8 sources

Lap siding and corner trim on a wooden shed beside a windowIllustration

The short answer

Shed siding on the designer's sheds is 4x8 panel siding, T1-11 or engineered wood, nailed to 2x4 studs 16 inches apart over house wrap. The default 88-3/4 inch wall lets one 4x8 panel cover the wall and the floor frame down to 6 inches above the gravel with no horizontal joint. A 10x12 shed needs 14 panels (12 for the walls, 2 for the gable ends) and an 8x10 needs 11.

Shed siding is the skin that keeps rain out of your walls and sets how the building looks. On the sheds our designer draws, the siding is panel siding, T1-11 or an engineered wood panel, nailed straight to the wall studs. At the default wall, one 4x8 panel covers a 4 ft column of wall from 6 inches above the gravel, over the floor frame, to the top plate, so the count comes from the wall lengths.

This guide compares the common types of shed siding, shows how many panels each of the 24 gable sizes needs, gives a dated panel price, and walks through the install. The counts come from the shed designer, so they match the cut lists on our free plans. If you have not framed the walls yet, start with the frame shed walls guide.

Shed siding types compared

There is no single best siding for a shed. There is the type that fits your framing, your budget and your patience. The designer draws walls of 2x4 studs at 16 inches on center with nothing but siding on the outside, and that shapes which type fits.

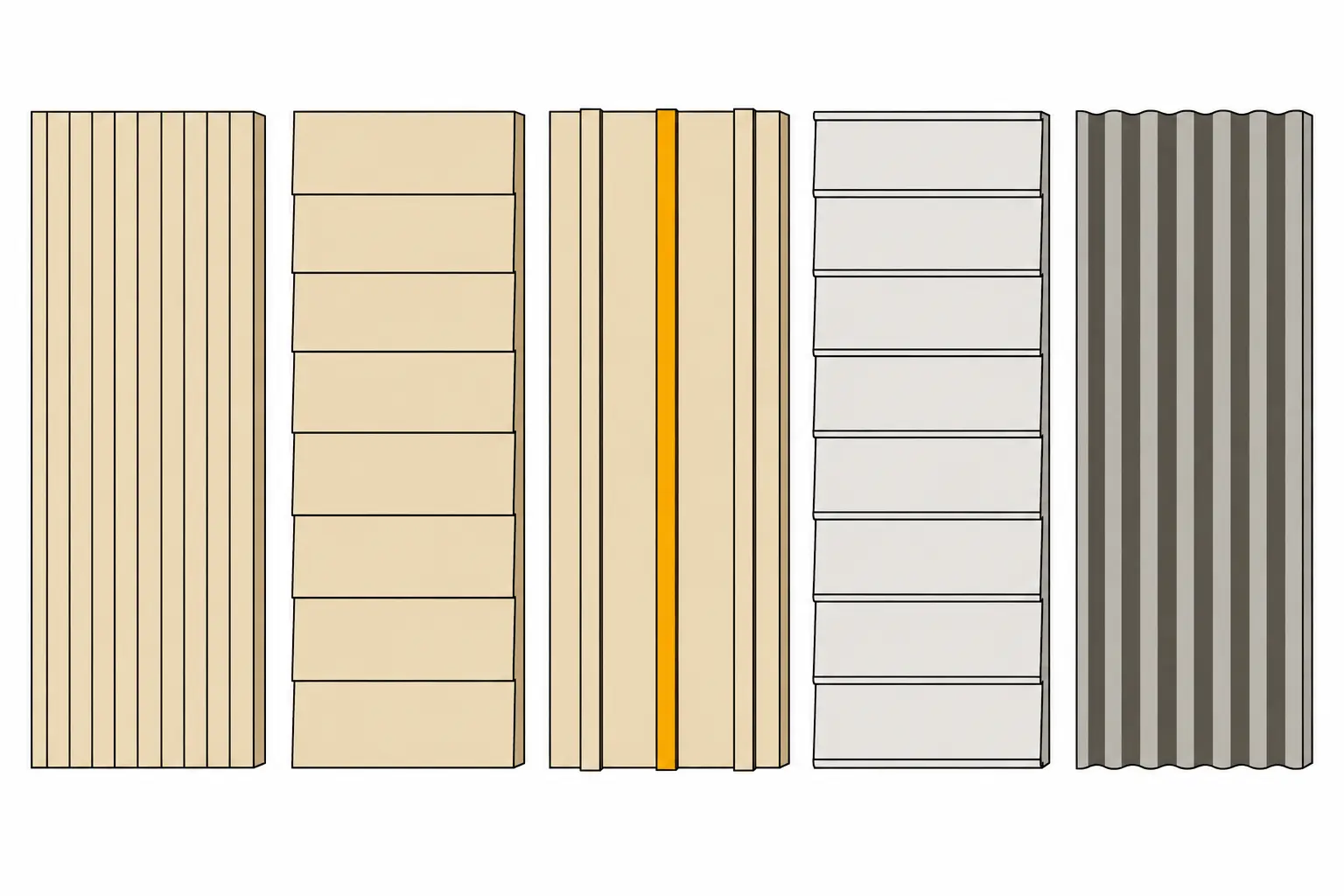

Five shed siding samples: T1-11 panel, lap siding, board and batten, vinyl and corrugated metal.Illustration

Shed siding panels: T1-11 and engineered wood

T1-11 is a registered trade name for a special APA1 303 Rated Siding panel. It is an all-veneer plywood panel with shiplapped edges and parallel grooves 1/4 inch deep and 3/8 inch wide, spaced 4 or 8 inches on center (APA, The Engineered Wood Association). APA describes it as going straight on the studs, and says to install it over a water-resistant barrier such as building paper or house wrap; the model code asks for one too (IRC2 R703.2), and the designer lists a roll of house wrap for it. Engineered wood panels sold as T1-11 style siding look the same on the wall and are made from wood strands or fibers bonded with resin instead of veneers.

The designer counts “APA1 Rated Siding (T1-11 or engineered wood)” in 4x8 sheets, and in 4x9 sheets only when you pick them for a taller wall. The APA stamp is what makes the panel brace the wall, so the designer lists no separate bracing. Where a wall is framed as a portal frame, as on the front of the 6 and 8 ft wide gables, the line asks for 19/32 inch T1-11 plywood or another APA Rated Siding at least 7/16 inch thick, because the portal frame needs 7/16 inch or more, so not LP SmartSide3 38 Series. LP, for one, lists its SmartSide panels in both sizes (LP product catalog). Panel siding is what most people picture on a garden shed, and it is the fastest type to hang: four studs’ worth of wall gets covered with one lift.

Lap, board and batten, vinyl, metal and more

These are the other types you will see in the shed aisle. What follows is general practice, not something we read in a manufacturer specification, and the maker’s install sheet decides for your product.

  • Lap siding. Long boards overlapped from the bottom up, nailed to studs or sheathing. Pick it when the shed should look like the house. Most of it goes over a sheathing or bracing layer, and every course is cut and nailed on its own.
  • Board and batten. Vertical boards with narrow strips over the joints, for a barn or farmhouse look. More pieces and more nails, and usually a layer behind. The board and batten calculator counts them for each wall.
  • Vinyl. Interlocking strips hung from nailing flanges, for a wall you never paint. It needs a flat wall behind it and trim pieces, such as J-channel and corners, on every edge.
  • Metal. Corrugated or ribbed panels screwed on, often over horizontal strips, for low upkeep. The screws take washers, and the strips add framing.
  • Fiber cement. Planks or panels of cement and wood fiber, heavy to lift and dusty to cut, so follow the maker’s cutting and nailing instructions to the letter.
  • Cedar shingles. Individual shingles nailed in overlapping courses, usually over sheathing. The most pieces of any type, and the slowest to hang.
  • Panel siding. 4x8 or 4x9 sheets nailed straight to the studs, for the fewest pieces. The edges need sealing and paint, and the panel is the only layer.

The designer’s wall has no sheathing layer, so its counts assume panel siding. If you choose lap, board and batten, vinyl or metal, add the layer behind it that the manufacturer asks for, and work out your own quantities from the wall areas, because the designer does not count those materials.

Which type fits which shed

For a first build with basic tools, panel siding gives the shortest list. For a shed that has to match a house, lap siding is the usual match and the extra work is the price of that. We do not have manufacturer data on lifespan or maintenance for any of these, so we do not rank them on durability. Look at what the shed will face: sun, rain and how often you are willing to repaint.

How much shed siding you need

Count the 4x8 shed panels wall by wall. Each wall needs one panel for every 4 ft of length, rounded up. How many panels tall each column is depends on the wall height once the floor frame is included.

The rule the designer uses

Wood siding has to stay at least 6 inches above the ground: the model code says so (IRC2 R317.1, item 5), and APA1 and LP3 say the same in their install instructions. On skids the designer starts the siding 6 inches above the gravel. The 4x6 skid is 5-1/2 inches tall, so the bottom 1/2 inch of the treated rim joist shows below the siding, and the band to cover below the subfloor is 5-3/4 inches: the rest of the 2x6 floor frame and the 3/4 inch subfloor. On deck blocks the floor sits 11-1/2 inches up, so the siding runs 1 inch below the floor frame and the band is 7-1/4 inches.

A 4x8 panel is 96 inches long, so on skids the tallest wall one panel covers is 96 minus 5-3/4, or 90-1/4 inches. The designer’s default gable wall stays at 88-3/4 inches, the height an 8 ft stud gives, so each panel is cut 1-1/2 inches short. Every wall column is one 4x8 panel with no horizontal seam, the corner trim boards are 96 inches long, and the studs are 84-1/4 inches (88-3/4 minus a 1-1/2 inch bottom plate and a 3 inch double top plate), cut from 8 ft boards. On deck blocks the 4x8 covers the 88-3/4 inch wall exactly.

  • Wall up to 90-1/4 inches on skids (88-3/4 on deck blocks): one 4x8 panel per 4 ft of wall.
  • Taller: you pick one of two options. The default is two 4x8 panels stacked in each column, with a horizontal joint 7 ft 6-1/4 inches above the floor on skids on Z-flashing, over 2x4 blocking set on edge between the studs.
  • The other option is 4x9 panels, which the designer flags as usually special order. A 9 ft panel covers walls up to 102-1/4 inches on skids.
  • Taller than that: the flashed joint is the only choice.

The gable triangles are counted separately in 4x8 panels, with 15 percent added for the angled cuts. They sit on top of the wall panels, so every gable plan also lists Z-flashing for the horizontal joint at the top plate under the gables. On a lean-to the same joint runs along the top plates. The designer does not subtract the door and the windows, because you cut a panel and buy it whole.

Horizontal joints: what the sources say

A horizontal joint is where water gets behind panel siding, so the sources are specific about it. The model code, IRC2 R703.5.2, says horizontal joints in panel siding must be lapped at least 1 inch, or shiplapped, or flashed with Z-flashing, and must fall over solid blocking, wood or wood structural panel sheathing (2024 IRC, via UpCodes). LP’s3 panel siding instructions ask for Z-flashing at a horizontal seam with a gap of at least 3/8 inch above it, show a 1 inch overlap as the other way to do it, and say not to put trim at a horizontal seam (LP panel siding instructions).

The designer follows the flashed version: Z-flashing in 10 ft pieces with 5 percent added for laps, a 3/8 inch gap above it, and 2x4 blocking behind every stacked joint, because its walls have no sheathing for the joint to land on. Your local code and your panel’s install sheet decide for your shed.

Panels for every gable size

This table is the designer’s result for the 24 gable presets at the default 88-3/4 inch wall. Every panel is a 4x8, and the only horizontal joint is the one under the gables. The first number in the shed size is the width across the door wall.

Shed 4x8 wall panels 4x8 gable-end panels Total panels 10 ft Z-flashing
6x6 8 1 9 2
6x8 8 1 9 2
6x10 10 1 11 2
8x8 8 1 9 2
8x10 10 1 11 2
8x12 10 1 11 2
8x14 12 1 13 2
8x16 12 1 13 2
10x10 12 2 14 3
10x12 12 2 14 3
10x14 14 2 16 3
10x16 14 2 16 3
10x20 16 2 18 3
10x24 18 2 20 3
12x12 12 2 14 3
12x14 14 2 16 3
12x16 14 2 16 3
12x20 16 2 18 3
12x24 18 2 20 3
14x14 16 3 19 3
14x20 18 3 21 3
16x16 16 3 19 4
16x20 18 3 21 4
16x24 20 3 23 4

The four lean-to plans keep a 97-1/8 inch front wall, which is taller than one 4x8 covers, so by default that wall gets two stacked 4x8 panels per column over a flashed joint, while the lower back and side walls take one 4x8 per column. Open any lean-to plan for its list.

What changes the count

Take a 10x12 shed as the example. At the default 88-3/4 inch wall it needs 12 wall panels and 2 gable panels, all 4x8, plus 3 pieces of Z-flashing for the 20 ft of joint under the gables. Any lower wall keeps the same count. Raise the wall to 96 inches and the siding runs 101-3/4 inches, past what one 4x8 covers:

  • With the joint (the default), each column is two stacked 4x8 panels: 24 wall panels, 2 gable panels, 7 pieces of Z-flashing for 64 ft of joint (20 ft under the gables and 44 ft where the panels stack), 2x4 blocking behind the joint, and about 22 lb of siding nails instead of 12 lb.
  • With 4x9 panels, it is 12 wall panels of 4x9, 2 gable panels of 4x8 and 3 pieces of Z-flashing, with 12 lb of nails. Ask your store before you plan on them, because the designer marks them usually special order.

Raise the wall to 120 inches and the siding runs 125-3/4 inches, past the 108 inches a 4x9 covers, so the joint is the only choice: again 24 wall panels, 2 gable panels and 7 pieces of Z-flashing. On skids a wall taller than 90-1/4 inches doubles the wall panels or sends you to a special-order size.

DOOR48" x 78"Header 2-2x632-1/2"80-1/2"29-1/2"0"11-3/4"91-3/4"107-3/4"111-1/2"9' 5" long, studs 84-1/4"7' 4-3/4"door head 78"
A 10x12 wall. the studs at 16 inches on center that the panels nail to.Open this design

Nails and trim

The designer lists 8d hot-dip galvanized common nails, 2-1/2 inches long and 0.131 inch thick, spaced 6 inches on the panel edges and 12 inches on the intermediate studs, 3/8 inch from the panel edges, the same 6 and 12 inch pattern as LP’s3 install sheet (LP panel siding instructions). With studs at 24 inches it asks for 6 inches on every stud: APA’s1 siding table allows 24 inch studs with 12 inch field nailing only in wind exposure B up to 90 mph. The default 10x12 needs about 1,050 of them, roughly 12 lb. The default 8x10 needs about 850. Those are the designer’s planning numbers. The nail is a common, not a spiral siding nail, because the siding is also the wall bracing: the model code’s bracing method (IRC2 Table R602.10.4, CS-WSP) sends its nailing to Table R602.3(3), an 8d common at 0.131 inch going at least 1-3/4 inches into the studs, and the thinner siding nail does not meet it.

Trim is separate, and the designer buys it in 8, 12 and 16 ft boards. Every piece is cut whole, with no joint, and short pieces share a board when they fit. The 8x10 lists eight 1x4 corner boards 96 inches long, two 1x6 fascia boards 120 inches long and four 1x4 rake boards 60-3/8 inches long, bought as nine 1x4 boards of 8 ft, one 1x4 of 16 ft that takes three of the rake boards, and two 1x6 boards of 12 ft. A run longer than 16 ft is two boards: the 20 ft fascia of a 10x20 is a 112 inch and a 128 inch piece on each side, joined over a rafter tail. The designer uses a butt joint with a 3/16 inch gap, sealed, which is LP’s3 rule for its trim, and LP says not to use scarf joints (LP trim and fascia instructions).

What shed siding costs

Prices move by store and by week, so treat these as a snapshot. At one Home Depot store in San Diego County, California (Otay Mesa, ZIP 92154), on September 29, 2026, three 4x8 panels cost:

Panel at that store Price per 4x8 sheet
TruWood Sturdy Panel, engineered wood $34.48
Plytanium T1-11 plywood siding, 4 inch grooves, nominal 11/32 inch $38.78
LP SmartSide Cedar Texture Panel $74.48

That is one store on one day, not a national price. The 11/32 inch Plytanium panel is thinner than the 7/16 inch a portal frame needs, so it does not suit the front wall of the 6 and 8 ft wide gables. We did not read a price for a 4x9 panel, for Z-flashing, or for vinyl, metal, lap or board and batten, so we cannot compare them.

A floor for the 10x12

At the default wall the 10x12 takes 14 panels, all 4x8, so the store prices apply to every sheet:

  • TruWood: 14 x $34.48 = $482.72
  • Plytanium T1-11: 14 x $38.78 = $542.92
  • LP SmartSide: 14 x $74.48 = $1,042.72

Treat that as a floor rather than a quote: it leaves out nails, trim, house wrap, Z-flashing, caulk, primer and paint. A wall taller than 90-1/4 inches on skids needs 24 wall panels instead of 12 with the joint, or 4x9 panels we have no price for, so get your own price for the panel size you need.

The cheapest way to side a shed

Fewer pieces and fewer layers cost less. Panel siding on bare studs is one layer and a few cuts. Keep a gable wall at the 88-3/4 inch default, or up to 90-1/4 inches on skids, so every column is one 4x8 panel with no stacked joint, no blocking and no special order. Choose plain corner trim and paint the panels yourself. A sheathing panel is not a siding panel. Siding panels carry a rated-siding label, like APA1 303 for T1-11 (APA), so read the label before you swap one for the other.

Install shed siding step by step

The steps are general practice for panel siding; the install sheet that comes with your panel overrides any of them.

Before the first panel

The wall must be square, the studs plumb and the corners tight. The designer’s default puts studs 16 inches on center, and T1-11 goes directly on them without diagonal bracing (APA1). The designer checks each wall against the model code’s bracing table for panel siding (IRC2 Table R602.10.5). Where the solid wall beside a door is too narrow, as on an 8 ft wide front with a typical door, it frames the wall as a portal frame (IRC R602.10.6.4) when the door fits under its 2x12 header, and the siding on that wall is nailed 3 inches apart on the portal framing and in a 3 inch grid over the header; otherwise it does not generate the plan and offers a door or a size that passes. Check the panel label for the stud spacing it allows before you consider 24 inches: the designer then asks for a stamp that reads 24 oc.

  1. Wrap the walls

    Cover the studs with house wrap (APA says to always install the siding over a water-resistant barrier, and so does IRC R703.2). The designer lists a 9 by 100 ft roll and plastic cap nails for it; lap each upper course over the lower by 2 inches or more and the end joints by 6 inches.
  2. Flash the openings

    Add flashing at the top of the door and windows so water runs over the siding, not behind it. The designer lists Z-flashing for the door and window heads and flashing tape for the windows.
  3. Start at a corner

    Set the first panel plumb, with its bottom edge 6 inches above the gravel on skids (1 inch below the floor frame on deck blocks) and its top even with the top plate, which is the band the designer sizes it for.

Hanging the panels

  1. Nail to the studs

    Use 2-1/2 inch galvanized nails, 6 inches apart on the edges and 12 inches on the intermediate studs, 3/8 inch from the panel edges, as in the designer’s list. Leave a small gap between panels where the maker calls for one.
  2. Cut the openings

    Mark the door and window, cut with a circular saw or jigsaw and support the panel so the cut piece does not tear.
  3. Flash under the gables

    Set Z-flashing along the top of the wall panels at the top plate before the gable triangles go on, and leave a 3/8 inch gap above it (LP panel siding instructions).
  4. Do the gables last

    The triangles are cut from 4x8 panels; the designer adds 15 percent for the angled cuts.
  5. Stacked walls

    On a wall taller than one panel covers (90-1/4 inches on skids) with the joint option, nail 2x4 blocking on edge between the studs at the joint, 7 ft 6-1/4 inches above the floor on skids. Hang the lower panel, put Z-flashing on its top edge, and set the upper panel 3/8 inch above the flashing. Do not cover the seam with trim.

Seal the edges

The cut edges and the bottom edge of a wood panel soak up water first. Common practice is to prime or paint them before you hang the panel. Keep the bottom edge clear of the soil: LP3 asks for at least 6 inches between its siding and the finish grade (LP panel siding instructions), the designer starts the panels 6 inches above the gravel for that reason, and a gravel pad helps keep it that way. Our gravel shed base guide explains the pad.

Trim and paint

Trim hides the panel edges and finishes the corners. The designer lists 1x4 corner boards, 1x6 fascia and 1x4 rake boards. You will need sealant where the trim meets the panels and where the wall meets the door frame, and exterior paint over primer, following the paint maker’s coat count. The designer’s list counts them: tubes of paintable exterior caulk for the corner boards, the openings and the trim joints, and gallons of primer and paint for the walls and gables plus the trim, at the coverage it names on each line. Check the coverage on the can you buy.

Match the roof edge

The fascia and rake boards ride along the roof edges. The how to build a shed guide walks through when the trim goes on in the build order.

Permits, heights and siding

Siding is rarely what a building department checks, but the wall height you choose to save on siding is. A permit threshold, setback or height limit is local, and the model code’s 200 sq ft exemption for a one-story detached accessory structure is only a model (Grant County, WA, reprinting IRC2 2021 R105). Elgin, Illinois, for one, defines a shed as no more than 150 sq ft (City of Elgin). Read our shed permit basics and call your building department before you order panels.

Where to go next

Enter your own numbers in the shed designer and the panel count updates with the walls. The 10x12 gable plan has the full cut list, and the shed on skids guide covers the floor frame that the siding runs down over.

Sources

Every number in this guide that does not come from our own shed designer was checked against these 8 documents, numbered in the order the text first cites them and read between Sep 29, 2026 and Sep 30, 2026. 8 are codes, agencies, makers and stores.

  1. 1APA, The Engineered Wood AssociationAPA Rated Siding
  2. 2International Code Council, via UpCodes2024 International Residential Code, Chapter 7 Wall Covering (R703.4, R703.5.2)
  3. 3LP Building SolutionsLP SmartSide Panel Siding Application Instructions (LPZB0512, 2024)
  4. 4LP Building SolutionsLP SmartSide Trim and Fascia Application Instructions (LPZB0521, 2020)
  5. 5LP Building SolutionsLP SmartSide Trim and Siding Product Guide and Specifications 2026
  6. 6City of Elgin, IllinoisQuick Guide: Shed
  7. 7Grant County, WashingtonExempt R105.2 (2021 International Residential Code, section R105)
  8. 8The Home Depot, Otay Mesa CA store (ZIP 92154)Search results and shelf prices for "T1-11 siding 4x8 5/8"

Questions

Anything else? Write to us or browse every guide.

Questions people ask

For a wood-framed backyard shed, panel siding such as T1-11 or an engineered wood panel is the easiest to build with, because it nails straight to the studs and covers a whole 4 ft column in one piece. Lap, board and batten, vinyl and metal work too but need more layers. Pick by budget and by what matches your house.

Choose panel siding on bare studs: one layer, few cuts, no strips or starter pieces. Among the three 4x8 panels we priced at one Home Depot store, the engineered wood panel was the lowest at $34.48 on September 29, 2026. Prices differ by store and week, and paint and trim still cost money.

The designer's 10x12 gable shed needs 14 sheets of 4x8 panel siding: 12 for the four walls and 2 for the gable ends, plus 3 pieces of 10 ft Z-flashing for the joint under the gables and about 12 lb of 8d hot-dip galvanized common nails. Door and window sizes do not change that count. Wall height does: on skids, above 90-1/4 inches each 4 ft of wall takes a second 4x8 panel over a flashed joint, or one 4x9 panel, which is usually special order.

Wood-based panels are the usual pick for a wood-framed shed because they are cut and nailed with basic tools. Metal panels suit a low-maintenance or farm look and are screwed to horizontal strips. Vinyl is light and needs no paint. Whichever you choose, the maker's install sheet decides the fasteners, stud spacing and what goes behind it.
