The short answer
Shed anchoring ties a shed to the ground so wind cannot lift or slide it. The designer's skid shed lists 4 earth auger anchors, 30 in or longer with a holding rating from their maker, one at each corner with its cable around the outside skid, plus one rafter-to-plate tie at every rafter (18 on an 8x10) and a strap over the ridge at every rafter pair. Local codes decide what is required, so ask first.
Shed anchoring is how you keep a shed from sliding or lifting in the wind. A wooden shed on skids or blocks is held by its own weight and nothing else, and wind can get under an empty one. The short answer: tie the floor frame to the ground with anchors at the corners, tie the rafters to the walls with metal connectors, and ask your building department what it requires where you live.
This guide shows what the designer lists for anchoring, how to anchor a shed on each kind of foundation, step by step, and which local rules to check first. The counts come from the shed designer and the 8x10 gable plan. The designer counts hardware but does not calculate wind, so the numbers below are planning starting points, and your building department has the final say.
Shed anchoring by foundation at a glance
The foundation decides the hardware. This is the summary; each row has its own section below.
| Foundation | What holds it down | Designer lists |
|---|---|---|
| Skids on gravel or soil | Ground anchors near each corner, cabled to the outside skids | 4 earth auger anchors, 30 in or longer |
| Concrete slab | Concrete anchors through the bottom plate | No slab option |
| Deck blocks | Connectors from beams to blocks, plus ground anchors | No anchors |
| Wood deck | Screws or bolts into the deck framing | No deck option |
Whatever the foundation, the roof also needs one rafter-to-plate connector at every rafter, and the designer lists those for every shed.
Why anchor a shed
Wind pushes on a shed sideways and lifts at the roof edges. A roof with an overhang catches the wind from below, and a shed with an open door catches it from inside. A light shed on a gravel pad or blocks can slide or tip before it rises. Anchoring gives the wind something to fight besides the weight of the frame.
Some places require it
Anchoring is a rule in some places. Elgin, Illinois, accepts a gravel base as a shed foundation when it comes with code-approved tie-downs (City of Elgin, Quick Guide: Shed). Prince William County, Virginia, exempts a shed from a permanent foundation only when five conditions are met, including that the structure is anchored to withstand the wind loads in the state code (Prince William County Development Services, 2021). One shed maker’s assembly manual says its shed must be firmly anchored to its concrete pad to protect it in high winds (Duramax, 4x8 Sidemate manual). Those are three examples, not a national rule.
Gravel is not an anchor
A gravel pad drains water and keeps the frame off wet soil, but it holds nothing down. One shed seller puts it plainly: gravel improves drainage but does not work as an anchoring system by itself (Duramax Sheds Online, 2026). Our gravel shed base guide builds the pad; the anchors go through it into the soil.
What the designer lists
The designer adds 4 earth auger anchors to the materials list for a skid floor: 30 inches or longer, with a holding rating published by their maker, plus galvanized cable and wire-rope clips. One goes at each corner, its cable wrapped around the end of the outside skid and clamped with 2 clips. Its note gives one example rating, FarmGard’s 30 inch anchor at a maximum holding power of 1,400 lb in normal soil, says sand, wet clay and fill hold less, and warns that four anchors are not a high-wind tie-down. It no longer names a shed anchor kit: the kit we priced before, Arrow’s AK4, is made for Arrow’s metal sheds, with its cable over the roof. The designer also lists a rafter-to-plate connector, often called a hurricane tie, at every rafter bearing, and on a gable roof a steel ridge strap at every rafter pair. On the default 8x10 gable shed that is 18 connectors for 18 rafters and 9 ridge straps, and on a 12x16 it is 26 connectors for 26 rafters. The designer does not size an anchor, pick a soil type or calculate uplift. It is a parts count, not a wind design.
Shed anchoring by foundation
The rest of this section is general practice, not from a code table we read, so check the anchor’s data sheet and your local rules before you buy.
A skid shed on gravel or soil
This is the case the designer draws. The floor frame of 2x6 joists sits on 4x6 skids over a gravel pad, and the frame is what you tie down. Common practice is one ground anchor near each corner with a strap or cable across or through the floor frame, tightened so there is no slack. The shed on skids guide builds the frame the straps attach to.
A shed on a slab
A concrete slab gives you a solid base to anchor to. Drill through the bottom plate into the slab and set anchors made for concrete, following the anchor’s data sheet for hole size, depth and distance from the slab edge. The designer has no slab option, so we do not give a count. The Duramax manual quoted above is one maker’s own rule to anchor to the pad, so read your shed’s instructions too.
A shed on deck blocks
The designer’s other floor is 4x4 beams on concrete deck blocks, which puts the top of the foundation 11-1/2 inches above the pad instead of 5-1/2. Blocks hold the frame up but do not hold it down, and the designer lists no anchors for this floor. Fasten the beams to the blocks with the connectors made for them, and add ground anchors at the corners, strapped to the beams or the floor frame.
A shed on a wood deck
If the floor is a wood deck, screw or bolt the shed’s floor frame to the deck framing, not to the deck boards. The deck must be built to carry the shed and the wind load, which is a question for whoever built it and for your building department.
Ground anchors and how to choose
Ground anchors are the part most people search for, and the part where you need the data sheet, not a rule of thumb.

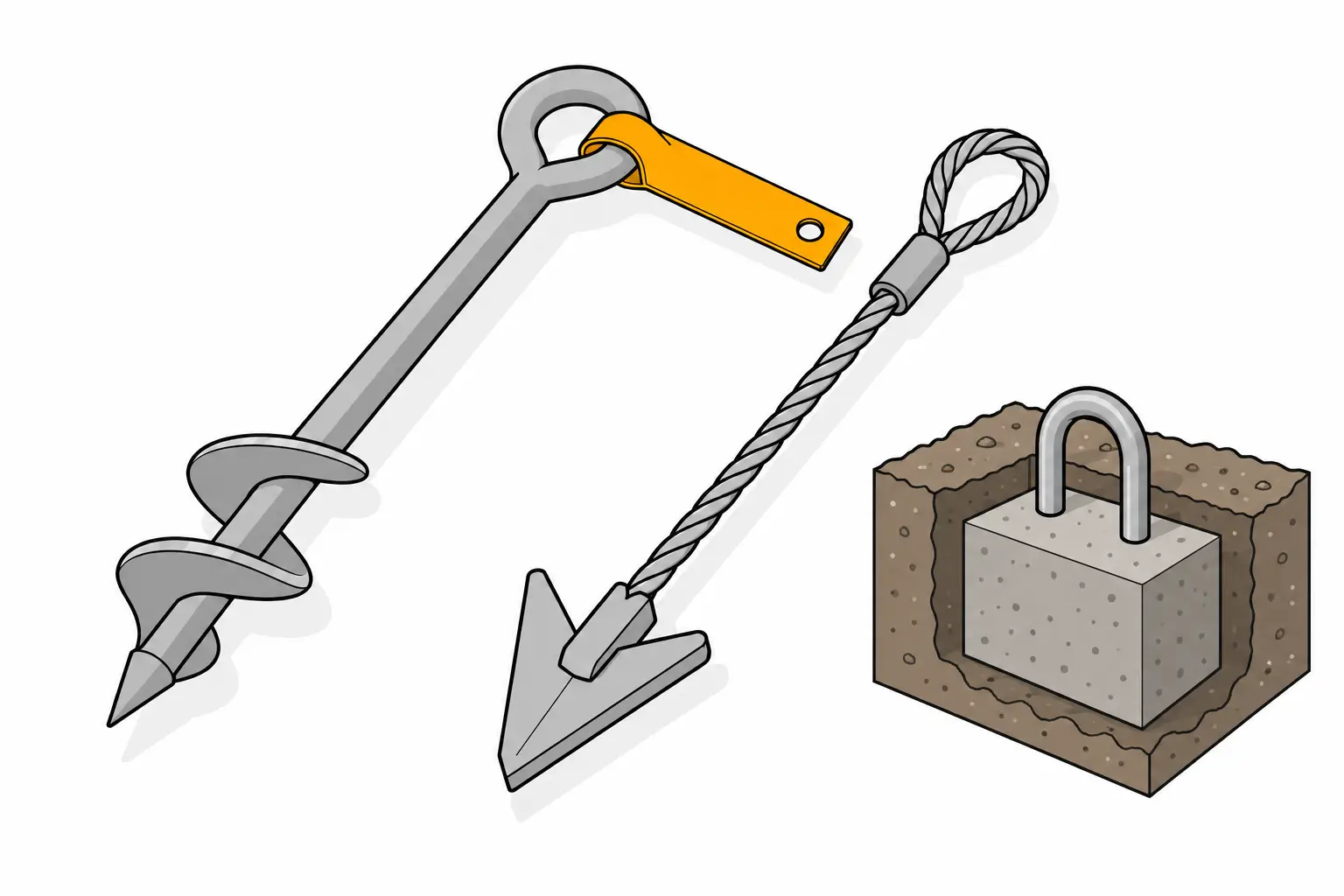

The types
- Auger anchors screw into the soil like a corkscrew, with an eye at the top for a strap or cable.
- Driven anchors are steel pins or arrows hammered into the ground and connected by a cable.
- Concrete anchors are steel loops or rods set in a buried block of concrete.
Each one fits a soil type. Soft, loose or sandy ground holds an anchor less well than firm clay, and ground that stays wet can change from season to season. Buy anchors that are galvanized or otherwise coated, with straps or cables rated for the load.

Ratings and depths
Anchor makers publish a holding rating for the anchor in specific soils, and it is the only number worth using. The one example on the designer’s list is FarmGard’s: 1,400 lb maximum holding power in normal soil for its 30 inch anchor, less in sand, wet clay or fill. Numbers on retailer blogs about depth, angle or pounds vary, and we have not verified any of them. Ask for the data sheet, read the soil it was tested in and match it to your yard.
How many anchors and how far apart
Four, one near each corner, is what the designer lists and what many kits hold. A long shed, an exposed yard or soft soil may call for more along the long sides, and your local rule may set a number. Spacing matters too: one anchor maker says to set anchors at least as far apart as they are deep, so each one has its own cone of soil to pull against (American Earth Anchors, 2026). Crowd two together and they share the same soil.
How the strap meets the frame
The same maker names three ways to connect a cabled anchor to a shed: loop the cable around the ground frame, loop it over a structural member inside the shed, or bolt it to the outside of the shed (American Earth Anchors, 2026). On a skid shed the first is the simplest: the strap wraps a skid or a rim joist at the corner. Whichever you choose, the strap goes to framing, never to siding or trim.
Anchoring without concrete
Auger and driven anchors are how most owners anchor a shed without concrete. The soil is the only thing holding them, so their strength depends on your soil more than on the anchor. Push a probe or a screwdriver into the ground in a few places to feel how firm it is. Check that your town accepts them, since a rule like Elgin’s names code-approved tie-downs and lets the local office say what that means.
How to anchor a shed, step by step
These are general steps. The anchor’s instructions override them wherever they differ.
Skid shed with ground anchors
Stage 1 of 6about 8 h
Gravel pad and skids
Call 811
Ask for utility marking a few business days before you dig, drive or screw anything into the ground (Common Ground Alliance, call811.com).Read the soil and the data sheet
Match the anchor to your soil, and note the depth, angle and spacing the maker gives.Mark the spots
Place one anchor near each corner of the floor frame, where the strap can reach a skid or rim joist in a straight pull.Set the anchors
Screw auger anchors in with a bar through the eye or a driver, or drive cabled anchors with the rod the maker supplies, to the depth on the sheet.Strap the frame
Run a strap or cable from each anchor around or through the floor frame, not the siding or the trim.Take up the slack
Tighten each strap evenly so the shed is not pulled out of level.Check it again
Retighten after the first heavy rain, when the ground settles.
Shed on a slab
Wait for the concrete
A new slab needs time to cure before you drill; the Duramax manual gives 48 hours for its own pad, and your concrete supplier may say longer.Mark the plate
Mark anchor spots along the bottom plate, one near each corner and more along the long walls, keeping the edge distance on the anchor’s sheet.Drill and clean
Drill through the plate into the slab with a masonry bit of the size the anchor asks for, and blow the dust out of the hole.Set and tighten
Drive the anchor with its washer and tighten to the maker’s instruction, never past it.
Shed on deck blocks
Connect beams to blocks
Fasten each beam to its block with a connector made for that block, where the block takes one.Add the corner anchors
Set ground anchors at the corners as for a skid shed and strap them to the beams or the floor frame.
Tie the roof to the walls
Wind that gets under the roof pulls on the rafters, so the joint at the wall plate matters as much as the anchors in the ground.
Rafter ties
The designer’s list includes one rafter-to-plate connector at every rafter bearing. Nail every hole in the connector with the nails the maker names, since a half-nailed tie is a weak one. The shed’s 2x6 rafters are 16 inches on center by default, so the ties run the length of both eaves.
Ridge straps
At the top, the designer’s gable list adds a steel strap at every rafter pair, the gable-end pairs too: 1-1/4 inch by 20 gauge, 18 inches long (Simpson Strong-Tie LSTA18 or equal), bent once over the ridge and nailed to the top edge of both rafters before the sheathing, with 3 10d common nails into each rafter (IRC R802.4.2 and R802.4.6). The 8x10 takes 9 straps and 54 nails.
Walls to floor
The wall studs sit on a bottom plate, and the plate has to be fastened to the floor frame. The designer’s wall is 2x4 studs 16 inches on center, and its list has framing nails for the wall and floor, counting 2 16d nails through the bottom plate every 16 inches. Where you nail through the bottom plate, hit a joist or rim joist, not just the plywood. The frame shed walls guide covers the wall build.
Check your local wind rules
Wind design is local. The model residential code has wind provisions, and towns adopt it with their own maps and changes. We did not read the current wind speed for any location, so ask your building department what design wind speed and anchoring they expect for a shed your size. A coastal or exposed site may get a stricter answer than a sheltered one.
Permits and anchoring
The 2021 International Residential Code, section R105.2, exempts one-story detached accessory structures up to 200 sq ft from a building permit, and it says that exemption does not authorize work that breaks the code or other local laws (Grant County, WA, reprinting IRC 2021 R105). A permit exemption is not an anchoring exemption. Read our shed permit basics and ask when you call.
Keep checking the anchors
Straps loosen and soil moves. Look at the straps and the ground around each anchor each spring and after a big storm, and retighten. If you move the shed, do not count on the old anchors: one shed seller notes that ground anchors can lose holding strength after removal, depending on the soil (Duramax Sheds Online, 2026).
Common mistakes
- Relying on weight. A wood shed with nothing inside is light.
- One anchor, one side. Anchor at all four corners, so the shed cannot pivot on one.
- Anchoring the trim. Straps go to the floor frame.
- Skipping the ties at the eaves. The wind lifts the roof edge first.
- Forgetting 811. Call before you drive or screw anything in.
Where to go next
Enter your own width and depth in the shed designer to see the connector count for your size. The shed foundation guide compares the floors, the shed ramp guide covers the other piece that meets the shed at the door, and the how to build a shed guide puts anchoring last in the build order, after siding and doors.
Sources
Every number in this guide that does not come from our own shed designer was checked against these 7 documents, numbered in the order the text first cites them and read on Sep 29, 2026. 6 are codes, agencies, makers and stores; 1 is a secondary source (shed sellers' and builders' guides), marked, used only where no code, agency or maker gives a number.
- 1American Earth AnchorsHow to Anchor a Shed to the Ground Without Concrete
- 2City of Elgin, IllinoisQuick Guide: Shed
- 3Common Ground Alliancecall811.com
- 4Duramax (manual hosted by Sheds For Less Direct)4x8 Sidemate Shed assembly manual
- 5Duramax Sheds OnlineSecondary sourceHow to Anchor a Shed for Long-Term Stability
- 6Grant County, WashingtonExempt R105.2 (2021 International Residential Code, section R105)
- 7Prince William County Development Services, VirginiaGuidelines for Building a Shed
